	Setting up your Validation Environment on your OMAP Platform
	Overview	Step 1	Step 2	Step 3	Step 4	Step 5	Step 6	Step 7	Step 8



Step 6

Contents 1 Board Validation Test 1.1 Setup 1.2 Framebuffer random data 1.3 Framebuffer test 1.4 Audio Test 1.5 LED Status Test 1.6 Thumb Drive R/W Test 1.7 WLAN test 1.8 Video Walkthrough of above step

[edit] Board Validation Test

If you downloaded the test-validation binaries the following actions will occur on bootup. Source is located at /bin/panda-test.sh

[edit] Setup

PandaBoard

• H2H-(HDMI-Type-A to HDMI-Type-A)
• USB thumb drive connected to USB port

[edit] Framebuffer random data

Command

dd if=/dev/urandom of=/dev/fb0 bs=1024 count=8100

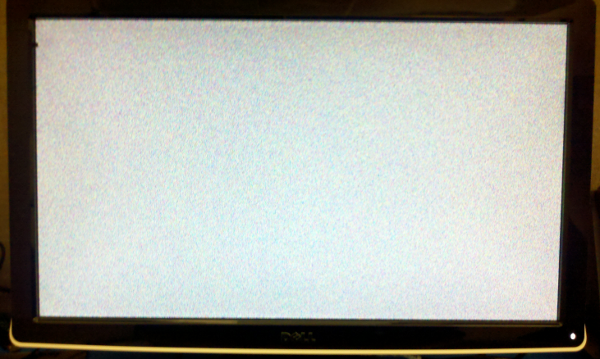

Details: This test will display random static on your display, assuming you have connected your HDMI cable to your display on PandaBoard.

Example

[edit] Framebuffer test

Command

fb-test

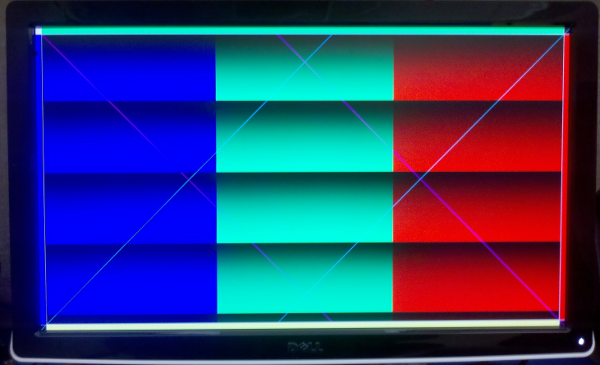

Details: This will display 3 vertical lines (blue, green, red). On the edge if each side of the display you will notice another set colors (green-top, red -right, yellow-bottom, blue-left). In the center of the screen you will see two over lapping X's.

Example

[edit] Audio Test

Command

line-out

speaker-test -D plughw:0,0 -t s -c 2 -l 2

HDMI audio

speaker-test -D plughw:0,6 -t s -c 2 -l 2

For more information regarding speaker-test see: speaker-test man page

[edit] LED Status Test

Command

echo none > /sys/devices/platform/leds-gpio/leds/pandaboard\:\:status1/trigger
echo 0 > /sys/devices/platform/leds-gpio/leds/pandaboard\:\:status1/brightness
sleep 1
echo none > /sys/devices/platform/leds-gpio/leds/pandaboard\:\:status2/trigger
echo 0 > /sys/devices/platform/leds-gpio/leds/pandaboard\:\:status2/brightness
sleep 1

LED's should blink on and off.

[edit] Thumb Drive R/W Test

This test is used to check the USB connection by transferring a file to a thumb drive and verifying the md5sum value. This test will run at startup and will output the result. Make use you have a USB thumb drive connected at startup.

Source

echo -n "Thumb drive transfer test: "
mount /dev/sda1 /mnt/thumb  > /dev/null 2>&1
temp=$?
if [ "$temp" = "0" ] ; then
cd /home/root  > /dev/null 2>&1
cp testdata.* /mnt/thumb  > /dev/null 2>&1
sync           > /dev/null 2>&1
cd /mnt/thumb  > /dev/null 2>&1
md5sum -c testdata.md5  > /dev/null 2>&1
temp=$?

[edit] WLAN test

Command

wlan-test.sh

This test runs a simple test script will ping a IP address and return the results.

[edit] Video Walkthrough of above step

A video walkthrough of the above step and what to expect when you run the minimal-fs can be found below:

---
